Series 600 > 620/621

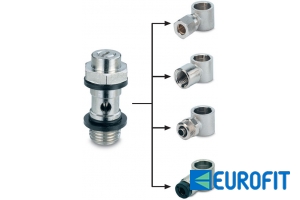

Restriction valve
Restriction valve
Cilindro - Cylinder

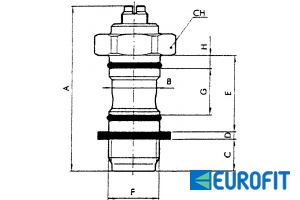

| Cod. | Ref. | F | A min | A max | B | C | D | E | H | G | Ch | Conf. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DV100001 | 620 | 1/8 | 29 | 33.5 | 8.5 | 5.7 | 2 | 15 | 2.6 | 9.1 | 14 | 10 |
| DV100002 | 620 | 1/4 | 35 | 40 | 11 | 7.7 | 2 | 17 | 3.1 | 11.4 | 17 | 10 |
Valvola - Valve
| Cod. | Ref. | F | A min | A max | B | C | D | E | H | G | Ch | Conf. |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DV100010 | 621 | 1/8 | 29 | 33.5 | 8.5 | 5.7 | 2 | 15 | 2.6 | 9.1 | 14 | 10 |
| DV100011 | 621 | 1/4 | 35 | 40 | 11 | 7.7 | 2 | 17 | 3.1 | 11.4 | 17 | 10 |
